Nominal power kW 14
Output power kW 11
Rated speed of the spindle 1/min 1100-1700

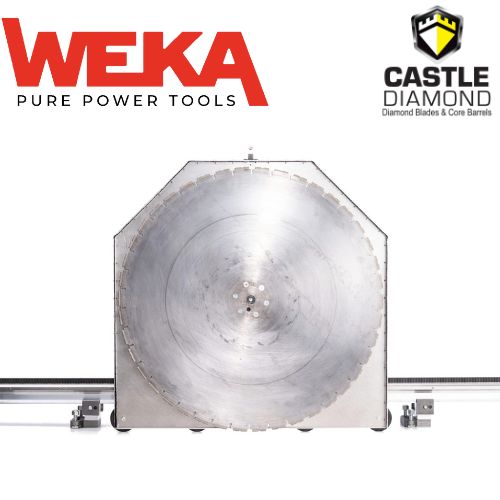

Saw blade diameter mm 750/930
Cutting depth mm 320/410
Feed power – longitudinal and dip feed N 2000
Speed – longitudinal feed m/min 0-3
Speed – dip feed 1/min 0-1
Weight kg 28,5
Blade fixture mm 1“ (25,4)
Saw flange for flush cut TK90, 6xM8

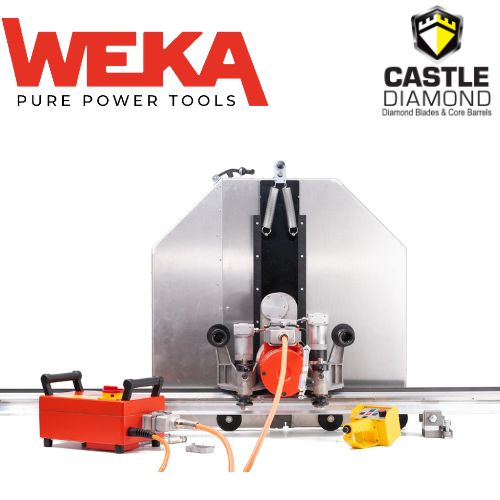

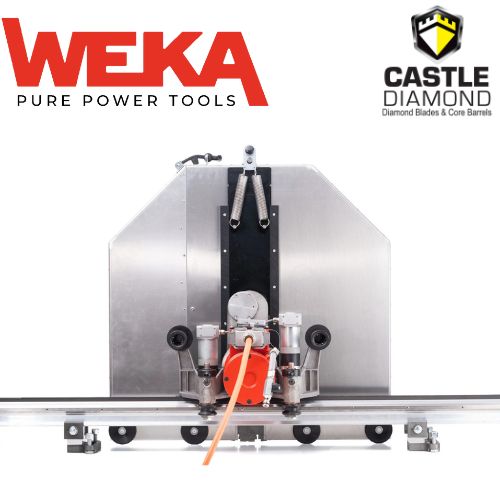

14kW Electric Wall Saw for Concrete and Masonry – Ideal for South African Construction Projects!
This powerful electric wall saw delivers a cutting depth of up to 410mm, perfect for heavy-duty concrete and masonry cutting. Featuring a water-cooled, high-frequency motor, wireless remote control, and adjustable spindle speeds (1100-1700 RPM), it’s designed for precision and efficiency. With a 750/930mm saw blade, 2000N feed power, and a lightweight design (28.5kg), this tool is built for professionals. Includes a range of accessories like wall saw carriages, guideways, and a trolley. Note: Six-week lead time applies.
Accessories:

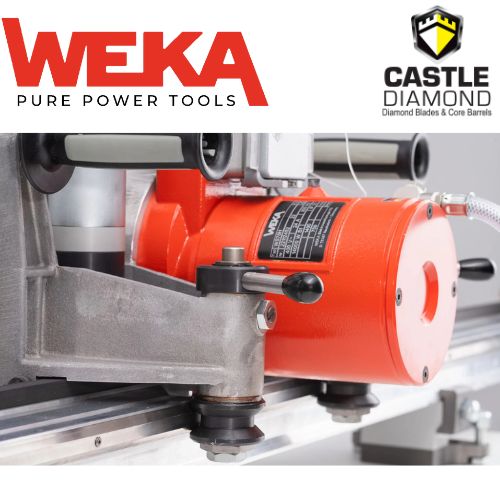

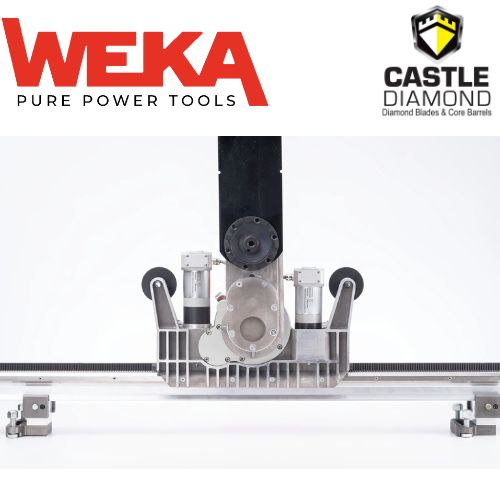

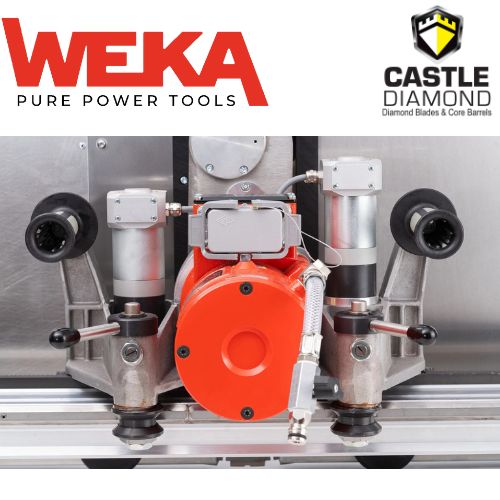

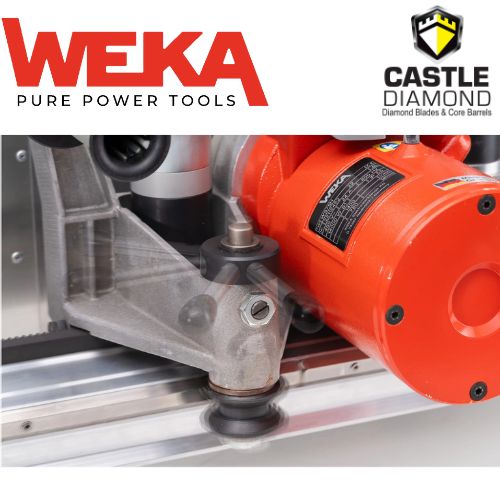

WS7620: Wall Saw Carriage with Motor

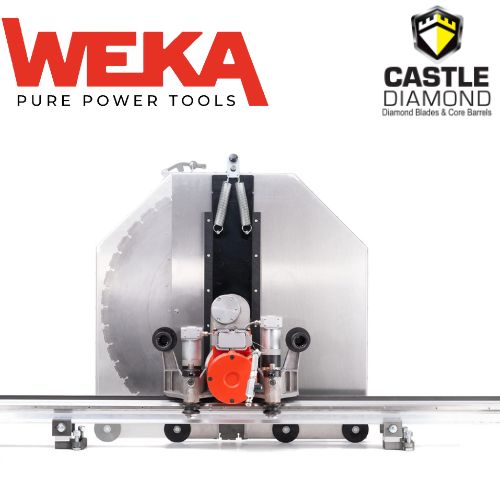

WS7532: Blade Guard – Standard 750mm with Visor

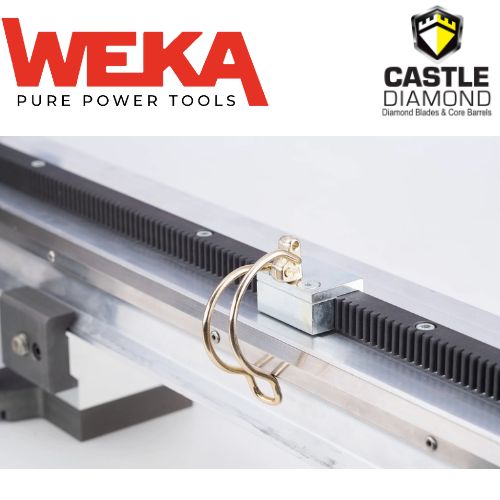

WS7542: Guide-way – Standard, 2.18m Long
WS7544: Guide-way – Short, 1.09m Long
WS7546: Fixing Bracket x2
WS7548: Stop Dog x2
WS7550: Connector Bridge

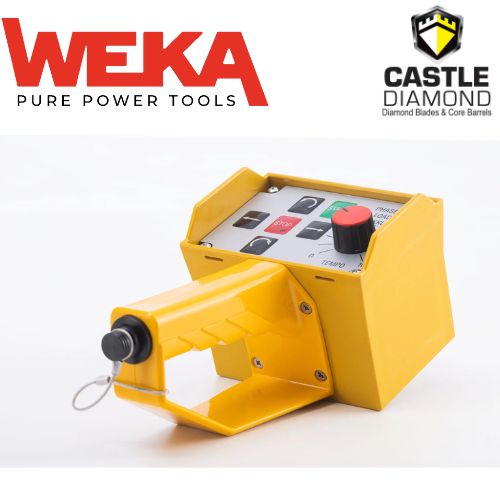

WS7556F: Wireless Hand Control Box for WS76H
Motor Cable AC/DC with Plugs and Cord Glands

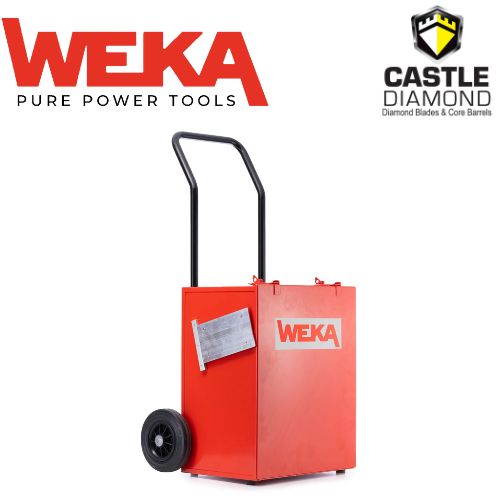

WS7570: Trolley for the Wall Saw

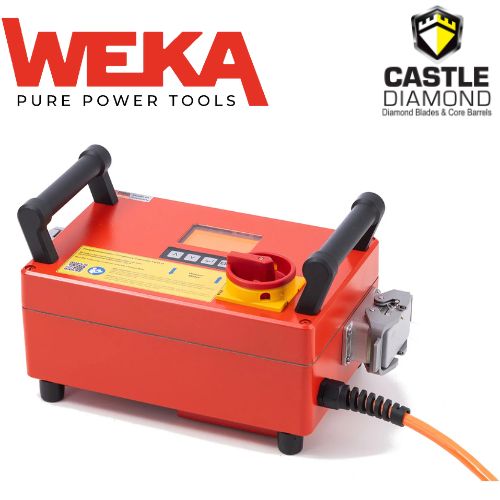

FU15D: Power Supply
